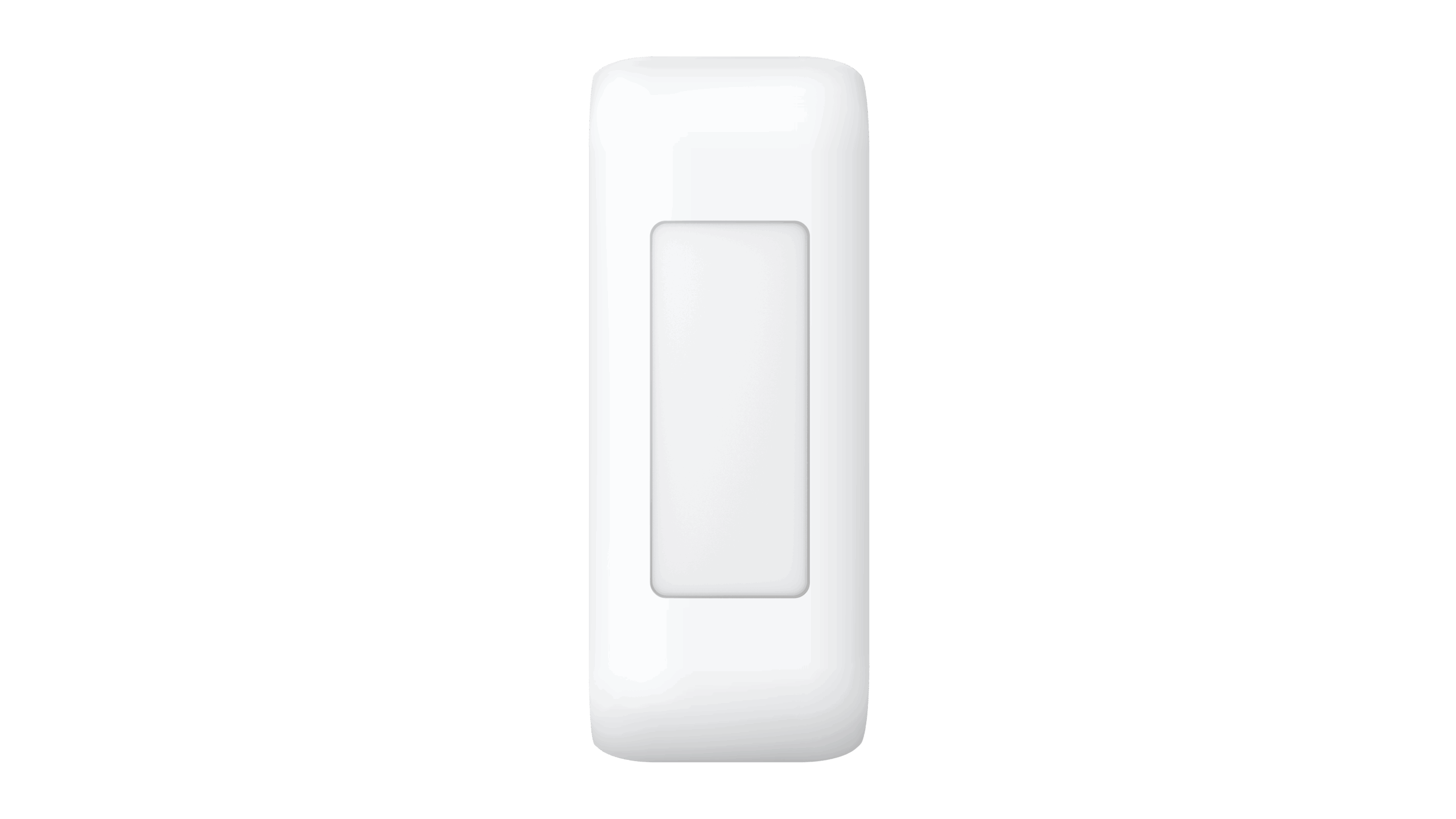

DS-PDC5NC-EG2 – Wired PIR Curtain Detector


  • · Slim design for window frame installation
  • · Automatic sensitivity
  • · Directional detection support

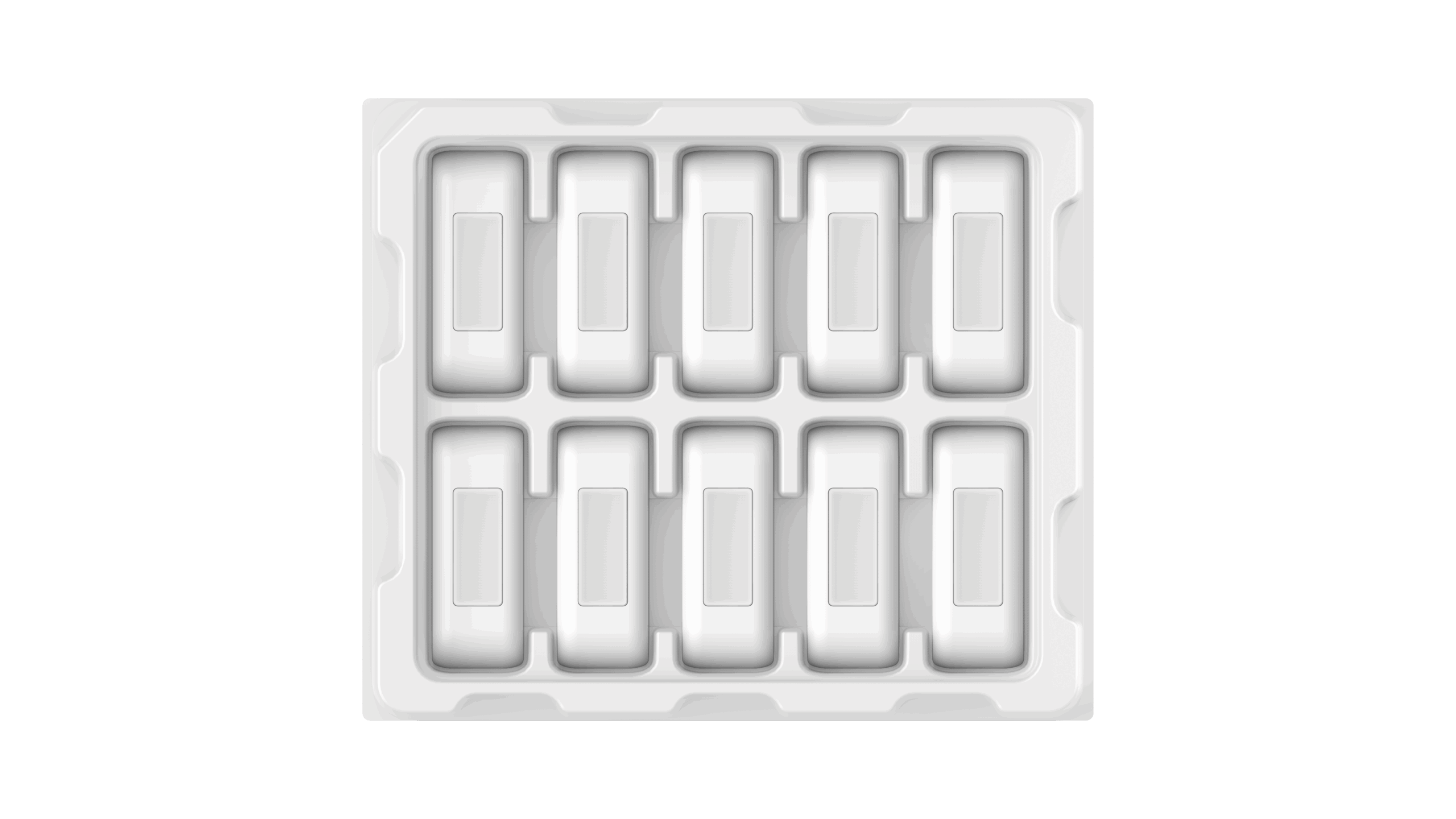

  • · Pack of 10 pcs

Detection Performance

  • Detection MethodPassive Infrared
  • Detection Range5m
  • Detection Angle
  • Detection Zones28
  • Detectable Speed0.3~2m/s
  • SensitivityAuto
  • White Light Filter6500lux
  • Digital Temperature CompensationSupport
  • Creep Zone ProtectionSupport

Feature

  • Digital ProcessingSupport
  • Tamper ProtectionFront
  • Directional DetectionSupport

Interface

  • Alarm OutputNormally Closed
  • LED IndicatorBlue(Alarm)

Transmission

  • Transmission MethodWired

Electrical Characteristics

  • Power Supply9 to 16 VDC
  • Typical Voltage12 VDC
  • Power Consumption

    Maximum current:15mA @12VDC

    Quiescent current:15mA @12VDC

General

  • Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity10% to 90%
  • Dimension(WxHxD)29.7mm × 78.1mm × 24.8mm
  • Weight31.5g
  • Mounting Height2.4 to 4m
  • Mounting MethodCeiling
  • Application ScenarioIndoor
