Digital Door Lock

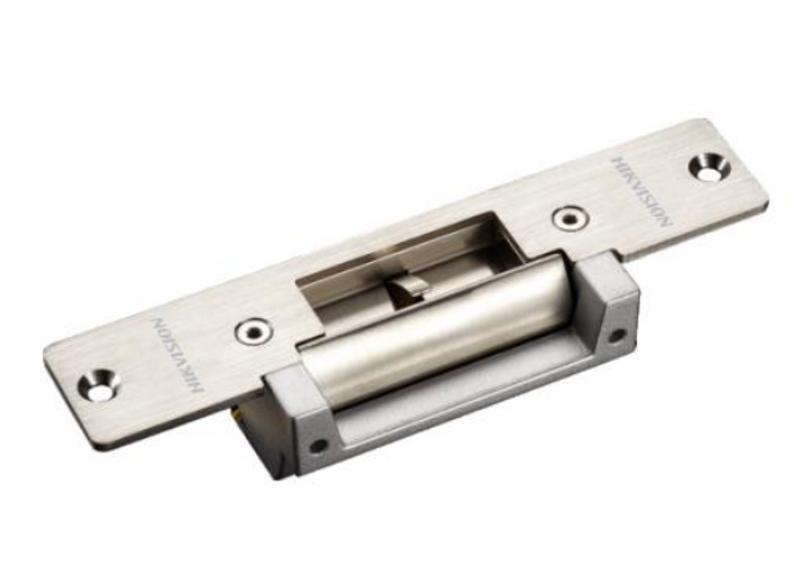

DS-K4G100 – Electric Strike Lock
- Fail-secure and fail-safe selectable
- Material of latch: US304 stainless steel | Material of plate: wire-drawing on the surface
- The magnetic lock supports static linear thrust of 800 kg (1764 lb)
- 100,000 times usage of the electromagnetic coil when powering on
- Depth of the latch groove: 15 mm
- Strong suction which protects the door from forced opening when the door is locked
- Double insulation
General
- Power supply12 VDC, 320 mA/24 VDC, 160 mA ± 15%
- Working temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working humidity0 to 95% (non-condensing)
- Dimensions165 mm × 43.7 mm × 35 mm (6.5″ × 1.7″ × 1.4″)
- Weight0.4 kg (0.9 lb)
- MaterialLatch: stainless steel
- ThrustMax. 800 kg (1764 lb)
- Door typeWooden door, metal door, PVC door
- Signal output
Dry contact signal output; NO output while locking and NC output while
unlocking
