Gate Automation
DS-K3BC411X – Value Swing Gate
- Valid passing duration settings: System will cancel the passing permission if a person does not pass through the lane within the valid passing duration
- Door remaining open when fire alarm triggered: The barrier will open automatically when alarm is triggered
- Barrier will be in free status when powering down
System
- MCBF＞3 million times
- MotorBrush motor
General
- Throughput
20 to 60 persons per minute
The actual throughput is affected by the person passing rate and passing method.
- Power supply method100 to 240 VAC; 50 to 60 Hz
- Working temperature-10 °C to 45 °C (14 °F to 113 °F)
- Lane width

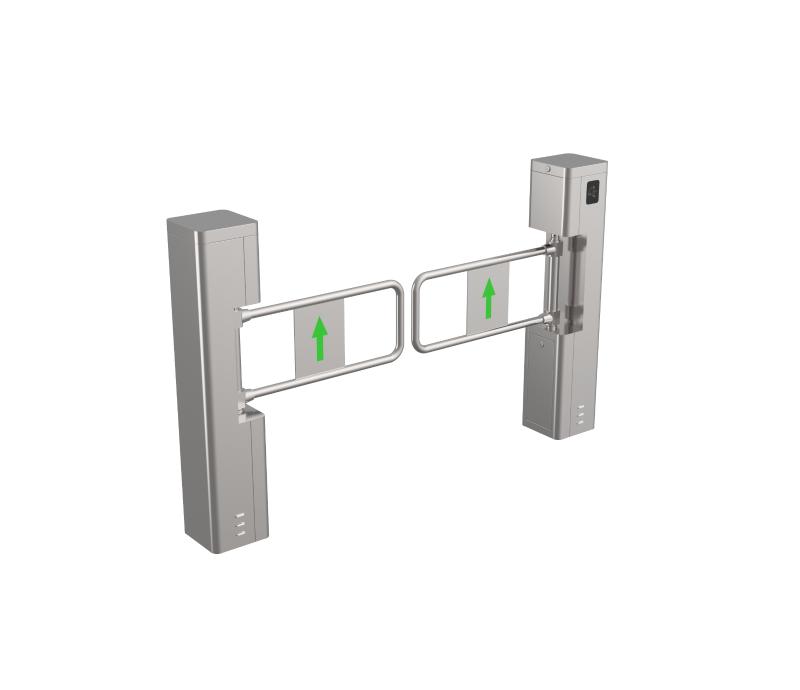

600 mm ( for Stainless steel pipe )

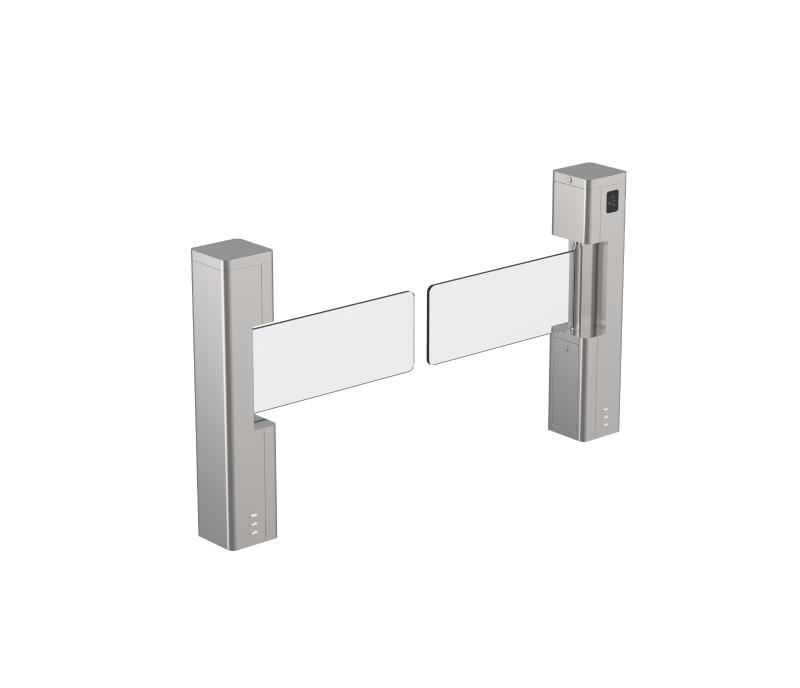

600 mm to 1100 mm ( for Acrylic glass )
- Barrier materialStainless steel pipe; Acrylic glass
- Working humidity10% to 95% (No Condensing)
- Pedestal materialSUS304 stainless steel
- Dimensions
Without packaging: 1200 mm × 200 mm × 1020 mm (47.2″ × 7.9\” × 40.2\”)
With packaging: 1408 mm × 348 mm × 1156 mm (55.4 × 13.7\” × 45.5\”)
- Application environmentIndoor
- Weight
35 kg/38 kg (Left/Right)
77.2 lb/83.8 lb (Left/Right)
Configuration
- Module selectionNO
- Authentication modeCard;Face
- Card typeEM;M1
- Wall distance130 mm
- Lane width600;650;750;900;1100
- Recommended width600
- Pedestal width200mm
- Pedestal length200mm
- Barrier materialAcrylic glass;Stainless steel pipe
- BaseNO
