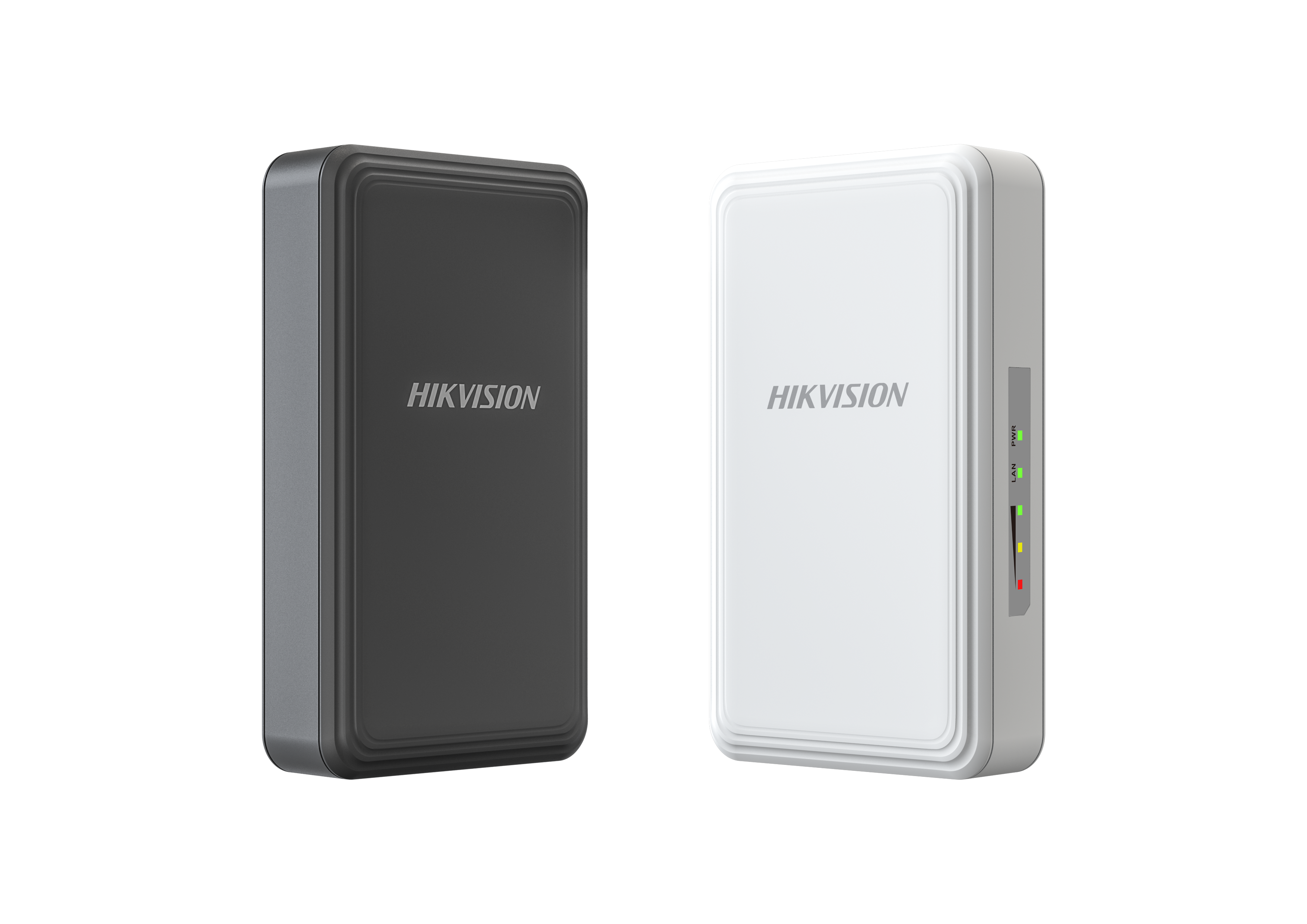

DS-3WF0BC-2NT(B) 2.4Ghz 300Mbps 200m Elevator Wireless Bridge

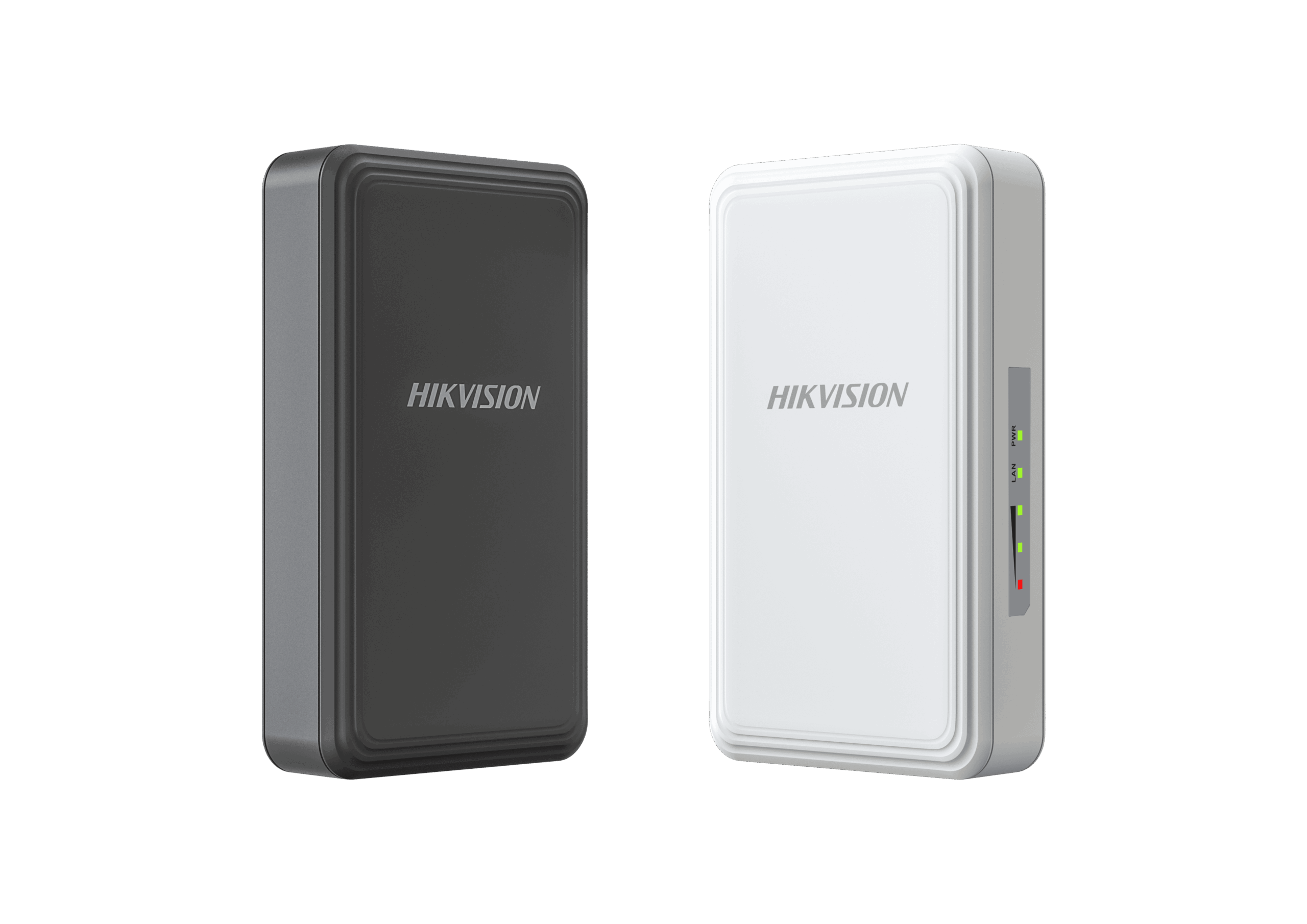

DS-3WF0BC-2NT(B) 2.4Ghz 300Mbps 200m Elevator Wireless Bridge - Image 2

DS-3WF0BC-2NT(B) 2.4Ghz 300Mbps 200m Elevator Wireless Bridge

  • Up to 200 m wireless transmission distance
  • 802.11n wireless bridge
  • Ideal Solution for Elevator Connection
  • Plug and Play

General

  • Product Dimensions (W × H × D)80 mm × 41.94 mm × 136 mm (3.15” × 1.65” × 5.35”)
  • Package Dimensions (W × H × D)256 mm × 231 mm × 86 mm (10.07″ × 9.09″ × 3.38″)
  • Net Weight0.12 kg (0.26 lb) per device
  • Gross Weight0.7 kg (1.54 lb)
  • Packing ListWireless Bridge × 2,Power Adapter (12 VDC, 1 A) × 2,10/100 Mbps PoE Injector × 2,Binding Tape × 4,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1
  • Packing MethodPacking in pairs
  • Working Temperature-30 °C to 70 °C (-22 °F to 158 °F)
  • Working Humidity5% to 95% (no condensation)
  • Storage Temperature-40 °C to 80 °C (-40 °F to 176 °F)
  • Storage Humidity5% to 95% (no condensation)
  • Installation ModePole Mounting
  • Ingress ProtectionIP41
  • Power Consumption1 W for typical (1-ch 2MP IPC), Max. 2 W

Wireless Parameter

  • Max. Transmission Rate of Air Interface≤ 72 Mbps
  • Wireless StandardIEEE 802.11b/g/n
  • Working Frequency Band2400 MHz ~ 2483.5 MHz
  • Antenna Gain7 dBi
  • Antenna Angle(H) Beamwidth [3 dB] 50° (V) Beamwidth [3 dB] 50°
  • Transmitting Power16 dBm @11b 1Mbps (Note: Transmitting power may vary with local regulations.)
  • Receiving Sensitivity-85±2dBm @HT20 MCS0
  • Throughput RatePTP: ,30 Mbps/0.2 KM(HT20)

Hardware Parameter

  • Network Interface1 × 10/100 Mbps RJ45 ports
  • LED IndicatorPower indicator, LAN indicator, Signal intensity indicator
  • Reset Hardware resetting button
  • Power Supply12-24 VDC Passive PoE

Software Function

  • Channel Width10/20 MHz
  • Channel SelectionAuto/manual selection
  • Network ProtocolNTP (network time synchronization),SADP (auto search for IP address),SSH (debugging)
  • Security ModeWPA2-PSK
  • Security MechanismWireless network name hidden
  • Management MethodWeb,iVMS-4200
  • UpgradeWeb,iVMS-4200
  • System LogSyslog
  • Application Function Support adaptive frequency hopping. Support fault self-healed.

Approval

  • EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
  • SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
  • RadioEN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
