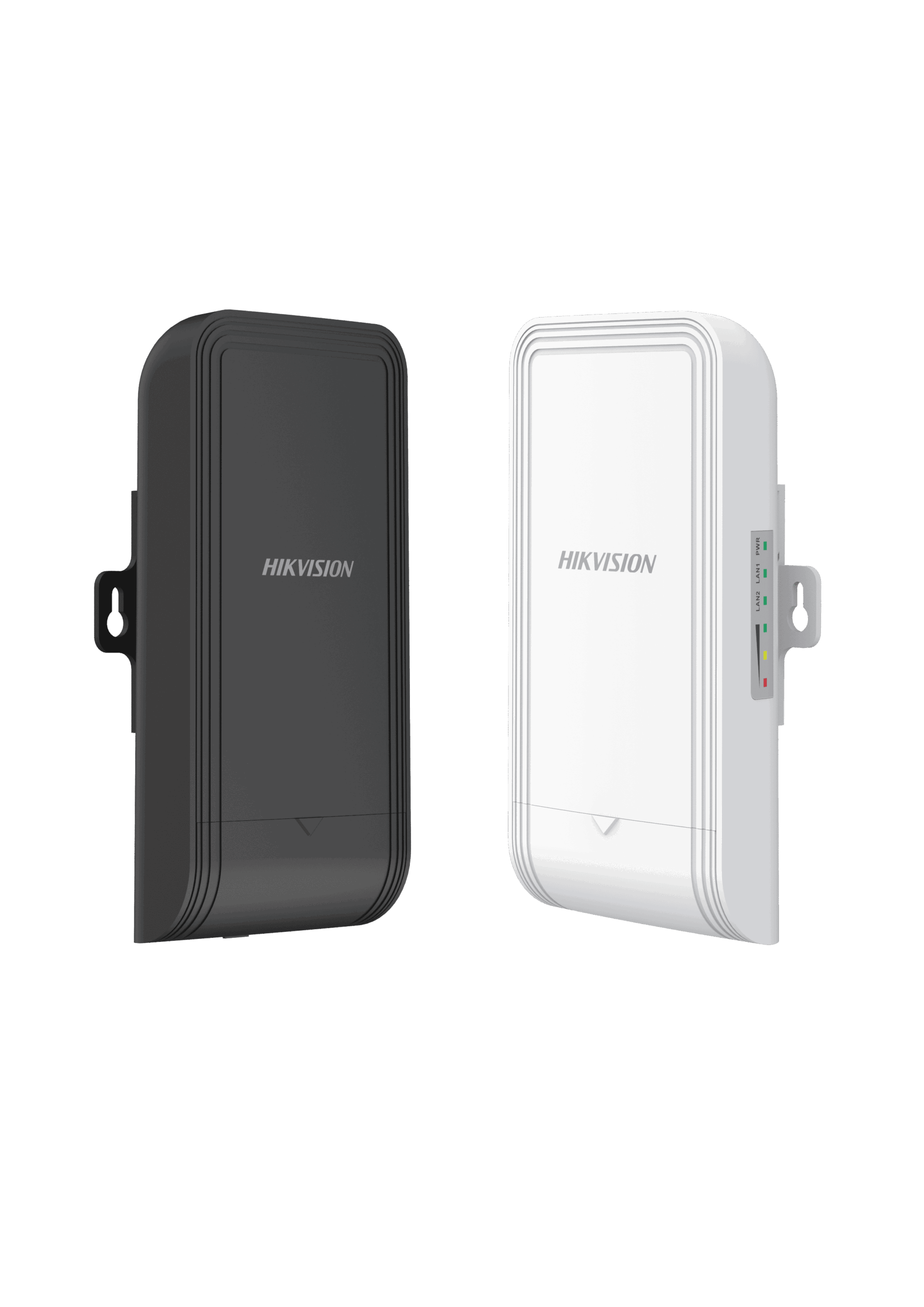

DS-3WF0EC-2NT – 2.4Ghz 300Mbps 500m Elevator Wireless Bridge

General

• Product Dimensions (W × H × D)90.8 mm × 57.87 mm × 187.87 mm (3.57” × 2.27” × 7.39”)
• Package Dimensions (W × H × D)256 mm × 231 mm × 86 mm (10.07″ × 9.09″ × 3.38″)
• Net Weight0.26 kg (0.57 lb) per device
• Gross Weight0.8 kg (1.76 lb)
• Packing ListWireless Bridge × 2,Power Adapter (12 VDC, 1 A) × 2,10/100 Mbps PoE Injector × 2,Binding Tape × 4,Quick Start Guide ×1
• Packing MethodPacking in pairs
• Working Temperature-30 °C to 70 °C (-22 °F to 158 °F)
• Working Humidity5% to 95% (no condensation)
• Storage Temperature-40 °C to 80 °C (-40 °F to 176 °F)
• Storage Humidity5% to 95% (no condensation)
• Installation ModePole Mounting
• Ingress ProtectionIP55
• Power Consumption1.89 W for typical (1-ch 2MP IPC), Max. 3.7 W

Wireless Parameter

• Max. Transmission Rate of Air Interface≤ 300 Mbps
• Wireless StandardIEEE 802.11b/g/n (2 × 2 MIMO 300 Mbps)
• Working Frequency Band2400 MHz ~ 2483.5 MHz
• Antenna Gain7 dBi
• Antenna Angle(H) Beamwidth [3 dB] 65° (V) Beamwidth [3 dB] 65°
• Transmitting Power23 dBm @11n MCS0 (Note: Transmitting power may vary with local regulations.)
• Receiving Sensitivity-87±2 dBm @HT40 MCS0
• Throughput RatePTP: ,50 Mbps/0.2 KM(HT40),30 Mbps/0.5 KM(HT40)

Hardware Parameter

• Network Interface2 × 10/100 Mbps RJ45 ports
• LED IndicatorPower indicator,LAN indicator,Signal intensity indicator
• ResetHardware resetting button
• Power Supply12-24 VDC Passive PoE

Software Function

• Application FunctionIFM,IPM
• Channel Width10/20/40 MHz
• Channel SelectionAuto/manual selection
• Security ModeWPA2-PSK
• Security MechanismWireless network name hidden
• Network ProtocolNTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging)
• Management MethodHCP,Web,iVMS-4200,HPP
• System LogSyslog,Control center information
• UpgradeWeb,iVMS-4200,HCP,HPP
• HPP

  Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

  1. Reboot device

  2. Restore device

  3. Display the topology information

  4. Display the connection status between AP and CPEs, including signal intensity, backgroud noise, sending & receiving rate

  5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power

  6. Bridge alignment

  7. Spectrum scanning

Approval

• EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
• SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
• ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
• RadioEN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
